Spine
C-Flexis

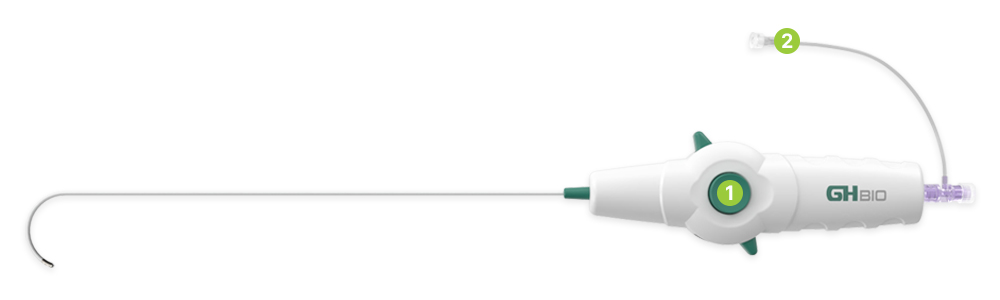

C-Flexis is a steerable epidural catheter that applies a lightweight design and ergonomic grip, enabling precise and stable directional control.
It is suitable for patients with chronic pain who do not respond to conservative treatment.
Indications
Post-lumbar surgery syndrome, spinal canal stenosis, adhesions, herniated disc, failed back surgery syndrome
List
Procedure Features
- Easy access to the pain area with bidirectional steering control capable of up to 180° movement
- Secures procedural convenience through radiopaque characteristics
01
- Port for drug injection
- Drug and contrast agent injection available through the side port
02
- Port for drug injection
- Drug and contrast agent injection available through the side port
Advantages of Epidural Catheter
- Minimally invasive procedure using a specialized catheter
- Safe and simple procedure without general anesthesia, with low bleeding and complications, and fast recovery possible with a short procedure time (20–30 minutes)
Confirm sacral hiatus location using C-arm fluoroscopy
Perform local anesthesia at the insertion site
Insert the needle at an angle of 35–50 degrees
Remove the stylet inside the needle and inject contrast media
Advance the catheter into the ventral epidural space
Adjust the catheter left and right to operate
[Confirm catheter position using C-arm]
Inject medication through the drug injection port
Specifications
| Part. No | Description | Size | Q’ty |
|---|---|---|---|
| CFX-100 | C-Flexis | Ф1.7 X L 300mm | 1 |
| Introduce Needle | Ф2.8 X L 90mm | ||
| CFX-200 | C-Flexis | Ф2.1 X L 300mm | 1 |
| Introduce Needle | Ф2.8 X L 90mm |
