Spine
GH-Racz
GH-Racz L : Lumbar catheter 19G / Introducer Needle 15G
GH-Racz C : Cervical catheter 21G / Introducer Needle 18G
List

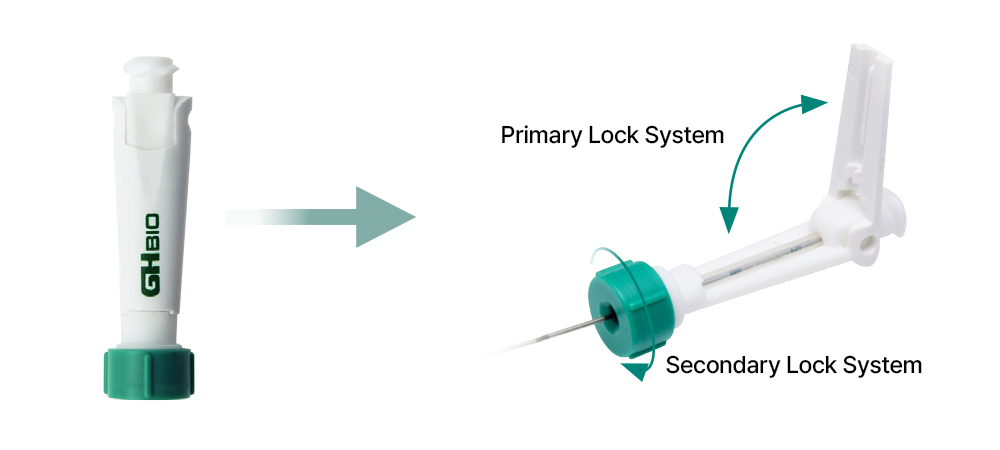

Double Lock System
- The adapter features a double-lock structure that securely fixes the catheter and prevents drug leakage.
GH-Racz L (Lumbar)
- Insert the introducer needle into the sacral hiatus.
- Advance the catheter through the sacral canal.
- Insert the GH-Racz L catheter into the target area.
- Use C-arm fluoroscopy to guide the catheter to the desired direction.
- Carefully advance the catheter to the affected region.
- Connect the adapter to the GH-Racz catheter.
- Confirm catheter position using contrast media.
- Inject medication through the catheter.
- After the procedure, remove both the catheter and introducer needle.
GH-Racz C (Cervical)
- Position the patient appropriately.
- Rotate the C-arm laterally to secure a proper view.
- Perform local anesthesia.
- Insert the introducer needle into the target area.
- Advance the GH-Racz C catheter through the introducer needle.
- Confirm the position using contrast media.
- Inject medication into the affected area.
- After the procedure, remove both the catheter and introducer needle.
Specifications
| Part. No | Description | Size | Q’ty |
|---|---|---|---|
| GH-RL | GH Racz-L | Ø1.15 X 610mm | 1 |
| Introduce Needle | Ø1.8 X 89mm | ||
| GH-RC | GH Racz-C | Ø0.83 X 310mm | 1 |
| Introduce Needle | Ø1.2 X 89mm | ||
| GH-RC-400 | GH Racz-C | Ø0.83 X 400mm | 1 |
| Introduce Needle | Ø1.2 X 89mm | ||
| GH-RC-500 | GH Racz-C | Ø0.83 X 500mm | 1 |
| Introduce Needle | Ø1.2 X 89mm |
